Product structure description:

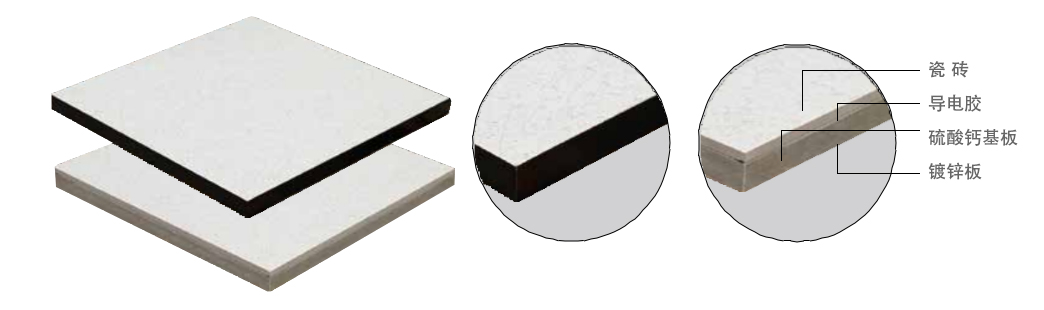

Using high-strength and high flexural calcium sulfate base material as the core, the surface is coated with ceramic veneer, the bottom is covered with high-quality galvanized steel plate, and the edges are sealed with PVC. It is assembled with network brackets, square tube beams, and screws.
Application field:

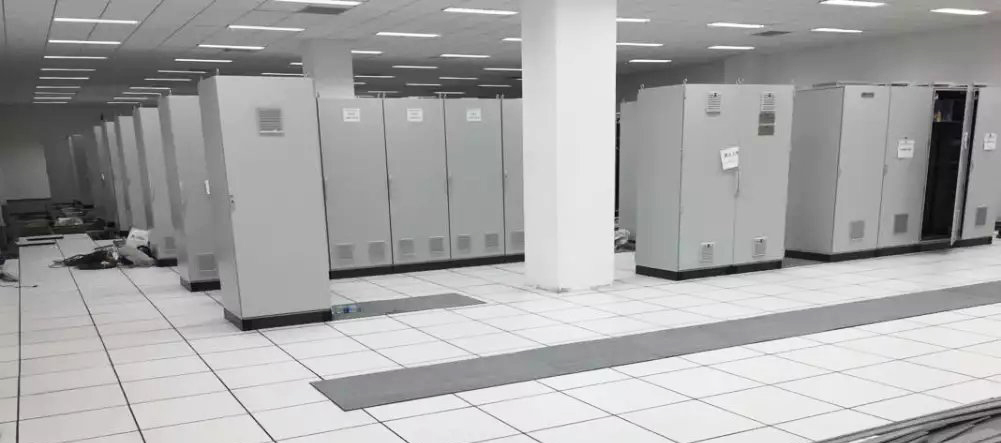

Widely used in intelligent office buildings, 5A intelligent buildings, banks, posts and telecommunications, power dispatch rooms, and other places.
product features:
1. The product uses ceramic tiles as the surface layer, which has characteristics such as high wear resistance, fire resistance,
waterproofing, and high load-bearing capacity.
2. Ceramic veneers are not easy to dust and are easy to clean.
3. The floor hardness reaches 7 degrees Mohs and the service life is more than 10 years.
technical parameter:
National standard grade |
size |
Concentrated bearing deflection≤2.0mm Residual deformation≤0.25mm |
Uniform load bearing |
load bearing |
Resistance to ground |
|
mm |
N |
KG |
N/㎡ |
N |
Ω |
|
CQ |
600*600 |
1960 |
200 |
9720 |
5880 |
1.0x106- 1.0x109 |
Q |
2950 |
300 |
12500 |
8850 |
||
P |
3560 |
363 |
16000 |
10680 |
||
B |
4450 |
454 |
23000 |
13350 |
||
Z |
5560 |
556 |
33000 |
16680 |
||
CZ |
6675 |
681 |
43000 |
20025 |
